Misting Nozzles- AD series
Liquids passing them through a small orifice under high pressure producing droplets range from 20 to 120 microns. Complete with anti drip spring / ball assembly including internal filter, it is constructed in brass or stainless steel.
Connection : 1/8 " Male Npt, 10/24 UCN or 12/24 UCN

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player



Download CAT - AD_Misting.pdf
Misting Ring - stainless steel
DIY Low pressure - connect to household tap
Low cost package at S$50 per assembly
For connection to household tap rated for
5 bar consist of  ;

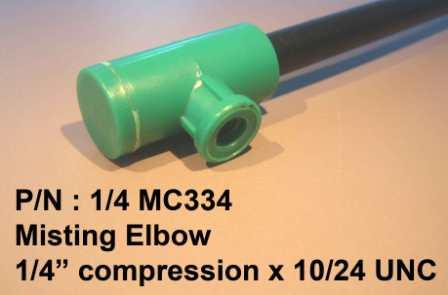

1 qty : 1/4MC334
            Misting Elbow
 1 qty   : Misting Tip

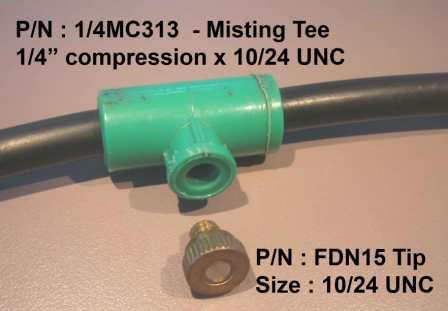

9 qty : 1/4MC313
            Misting Tee
9 qty :   Misting tip.
5 metre of Polyethylene
                   tubing
1 qty : Tap adapter
            1/4 x 3/4 FHT
DIY Low pressure - Components Price List
1/4 inch - low pressure tubing
Connect to Garden tap with 1/4 inch plastic tubing with misting in your balcony or verandah.
Download Price List -  Low pressure Household Mist for.pdf
DO IT YOURSELF  High Pressure - FOG TUBINGS & COMPRESSION FITTINGS
3/8 inch - High pressure Compression Tubes & Fittings with brass ferrule seal
Connect to high pressure pump to effect misting and yet low cost.
Size : 1/8 (Male) NPT Misting Nozzle with 3/8OD Brass compression fittings
Size : 1/8 (Male) NPT Ruby Insert Fog Nozzle with 3/8OD Brass - Nickel Plated
Connection : 10/24UNC with 3/8OD Slip Lock fittings
Download - Compression Fittings / Misting Nozzle Price List.

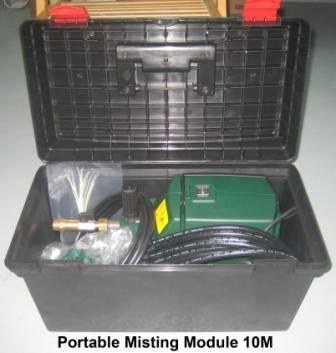

Portable Misting Module 10M for high pressure misting

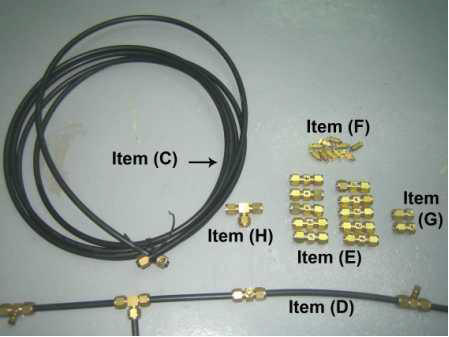

Complete range of components in a portable container c/w;
A) Container                                                - 1 pc
      Size : 520mm x 290mm x 290mm
B) High Pressure Pump                                - 1 pc
       Flow rate : 0.8 liter/min @ 40 bar
       Supply : 230VAC, 1 phase, 50 Hz,
        Power : 0.6 kw, 1450 rpm, Rated IP X5,
       noise 80 db c/w in-line discharge and suction filter,
        on/off ball valve, suction connector.
C) Lead tubing 3 metre to pump                     - 1 pc
D) Extension Tubing                                     - 10 pcs
       3/8” OD x 1metre,  c/w brass fitting and ferrule seal
        Rated working pressure : 120 bar
E) Compression Tee Fittings for nozzle         - 10 pcs
F) Anti Drip Misting Nozzles 10/24 UNC           - 10 pcs
G) Compression End Cap                               - 2 pcs
H) Compression Tee fittings                            - 2 pcs
See the Droplets difference between a Misting Nozzle and a Ruby Insert Fog Nozzle.
