CIP Tank Cleaning Nozzles
|
|
|
|
- 360 degrees Fixed Spray Heads - Type UAA
-
- The most simple tank washing device for low pressure
internal cleaning of vessels, tanks & containers of all kinds.
Where fixed heads can achieve a satisfactory cleaning result, their
simple design assures low investment cost and maximum reliability.
-
- They are usually operated at low pressure and cleaning is achieved
by intensive wetting and rinsing and by the turbulent action of
the water flowing down the tank wall.
-
- Spray ball diameters 28mm, 40mm, 50mm, 65mm, 90mm.
- Connection - 1/4", 1/2", 3/4" and 1-1/4" NPT
or BSP or
weld on spigot 20mm, 26mm, 30mm, or 36mm
Spray Pattern - 360°, 180° up or 180° down
Material - 316L stainless steel
- DOWNLOAD CATALOGUE :
Fix_Head_Tank.pdf
|
|
|
|

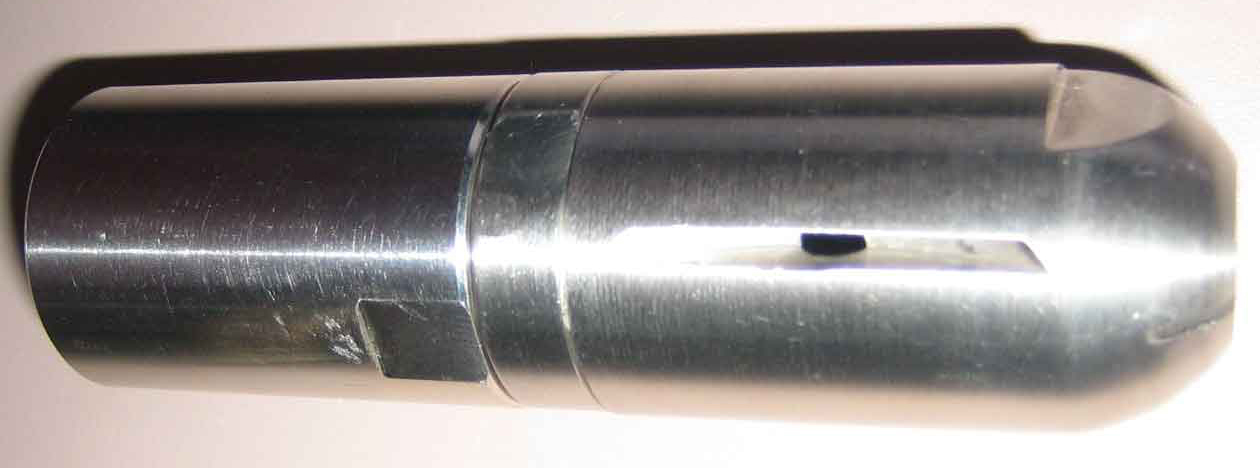

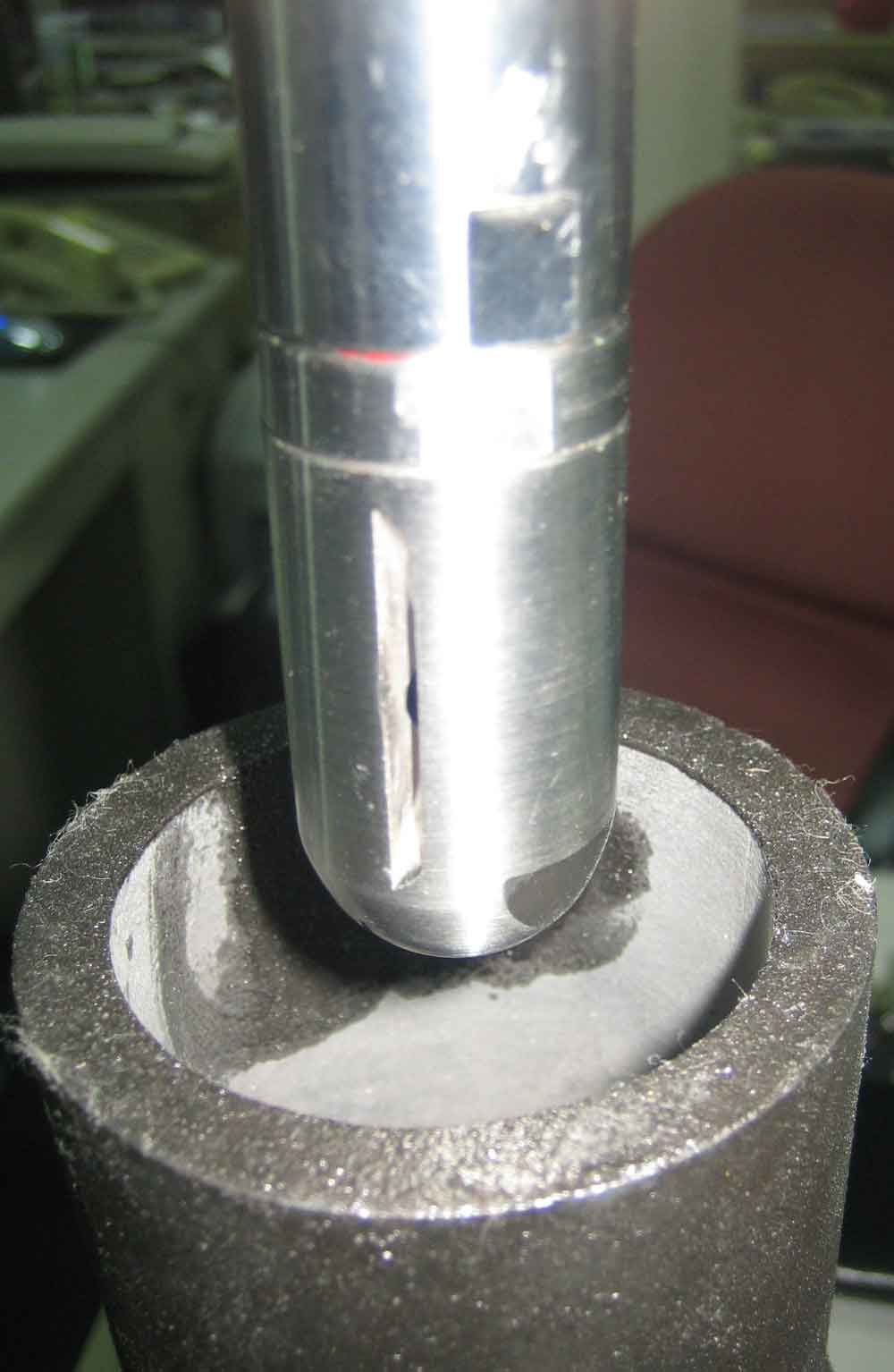

- Compact Rotating Cleaning Head - Type UBF
- Designed to fit through small openings for internal wall scrub.
- Speed of rotation is directly proportional to the inlet pressure.
- Typically used for cleaning
beer kegs, bottles, containers and pipes.
- Connection - 1/2" (F) NPT or BSP,
- Spray Pattern - 270° down,
- Material - 316 Stainless Steel,
|
|
|
Rotating Cleaning Head - Type
RO & UBB The rotary head spin on differential
pressure of the water inlet. It rotates at high speed on stainless
steel bearings. Three (3) strategically located orifice outlets
facilitates rotating water jet for tank cleaning. The clever design results
in no maintenance at all being necessary
Connection - 3/4", 1-1/2" (F) NPT or BSP
Spray Pattern - 360°, 180° Up, 180° Down
Material - 316L, Hastelloy C22,
Download Cat :
Rotary.pdf |
|
|
|
Rotating Cleaning Heads - Type UBC
Rotating motion is achieved by the reaction forces of the water
jets. The rotating sphere rolls on 2 rows of stainless steel ball
bearings so the head can be mounted in any position.
Inner and outer surfaces are highly polished to avoid contamination
and bacterial growth.
 Connection
- 1/2", 3/4", 1", 1 1/4" (F) NPT or BSP, or clip-on or weld-on connection
Material - 316L stainless steel
Spray Pattern - 360°, 180° down
Download Catalogue :
UBC_Tank_Washing.pdf |
|
|
FIX
TANK RINSING / WASHING - Type WA
These are fix head, high velocity, non clog spiral nozzles.
High impact droplets impingement.
|
Connection - 3/4", 1-1/2" (F) NPT or BSP
Spray Pattern - 270° and 180°
Material - Brass and stainless steel.
|
Download Catalogue :
WA_Tank
Rinsing.pdf
|
|
|
|

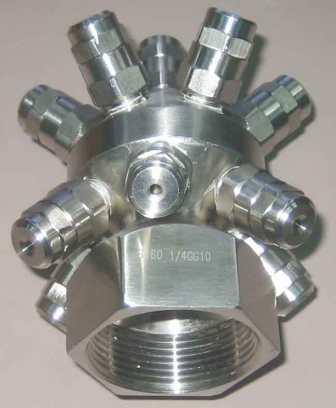

TANK WASHING LUMP
- 360° tank cleaning nozzles
Complete with ten (10) qty
of full cone nozzles clustered in a header, LUMP 6160 is a large
flow 360 degrees tank cleaning nozzle. It facilitates thorough
and efficient tank cleaning in a continuous blast of liquid
supply.
* Cluster can house 10 qty
of internal vane W series or spiral nozzles T series
* Complete 360 degrees
coverage.
Connection - 1 1/2"
and 3 " (Female) NPT
Material -
316 Stainless Steel/CD4-MCU Duplex S.S.
Download
cat -
LUMP 360.pdf |
|
|
|

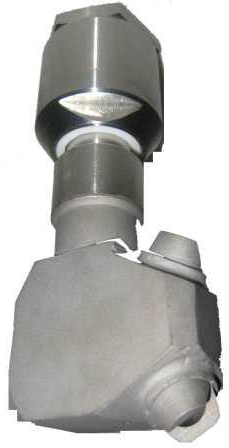

Two Axis Drive Head
- Type LT / LTFT
The Butterworth Type LT / LTFT
automated tank cleaning nozzles provides 360° impact indexed
coverage for the cleaning the insides of tanks, process vessels,
tank farms, ship storage vessels.
Tank capacities range from
500-150,000 gallons (2-570 M3) for one machine per tank. A
complete pattern is established when 65 axial revolutions of the
body have been completed with jet radius of 6m (min) to 40
meters (max) with varying pressure input.
Connection - 1 1/2" (F) NPT or BSP
or weld, Spray Pattern - 360°
Material -
316 Stainless Steel/CD4-MCU Duplex S.S.
Download
catalogue -
LT_LTFT_Tank_Clean_DS.pdf |
|
