Ruby Insert Fog Nozzles - FINE FOG  in Critical Mass

AVI - Fog from water

Download G.A Drawing - RI_Nozzles.pdf
Angle :90 to 120 degree Fog Plume.

DOWNLOAD CAT.   - RI_Fog.pdf
Schematic -  3m length system.pdf

Constructed of a 316 stainless steel body with ruby insert, 316SS impingement pin and extended polypropylene filter to trap particles in the base of the nozzle. High-pressure water  at 50 to 70 bar jet against an impingement pin of equal diameter resulting in the finest atomization possible, atomizing water into billions of 1 to 15 micron droplets.
CONDENSER AND TURBINE ADIABATIC COOLING
Download Cat : Condenser.pdf

Download : Pump skid.pdf

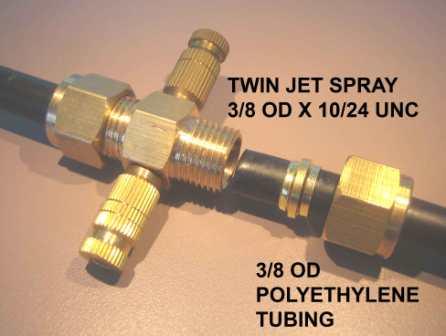

DO IT YOURSELF  High Pressure - FOG TUBINGS & COMPRESSION FITTINGS

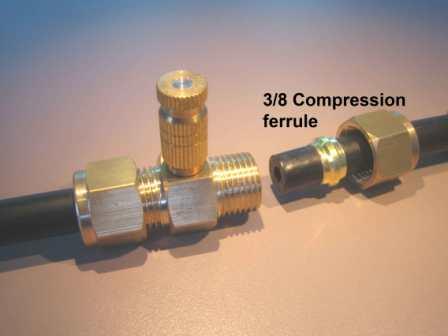

3/8 inch - High pressure Compression Tubes & Fittings with brass ferrule seal
Connect to high pressure pump to effect misting and yet low cost.
Connection : 10/24UNC with 3/8OD compression fittings

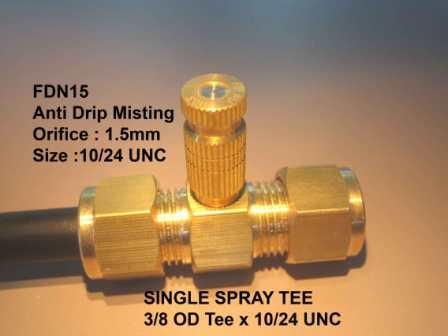

Size : 1/8 (Male) NPT Misting Nozzle with 3/8OD Brass compression fittings
Size : 1/8 (Male) NPT Ruby Insert Fog Nozzle with 3/8OD Brass - Nickel Plated
Download - Compression Fittings / Misting Nozzle Price List.pdf

See the Droplets difference between a Misting Nozzle and a Ruby Insert Fog Nozzle.
