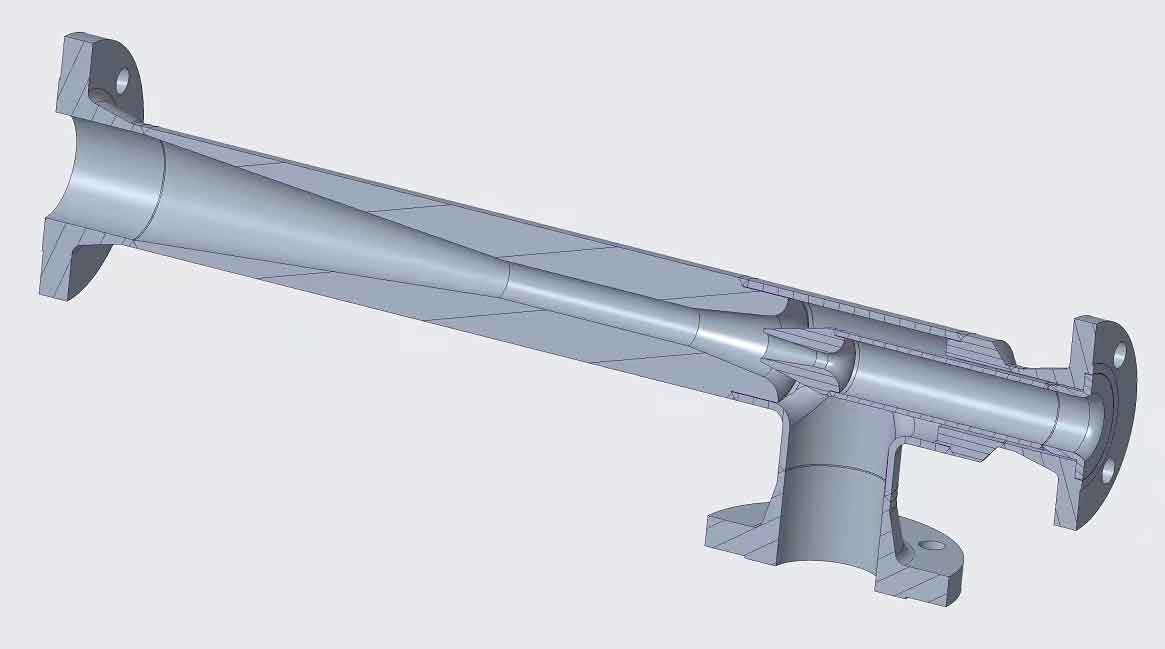

All ejectors are designed based on the two choke principals, that is the motive nozzle and the throat section. There are two ways to design an Eductor.
1) Either you provide values for the motive flowrate, motive pressure, discharge pressure and suction pressure and we will calculate the suction flowrate generated.
2) Alternatively you provide values for the motive pressure, discharge pressure, suction pressure and suction flowrate and we will calculate the motive flowrate required.
Fill the below application Details Sheet for a quotation. Documents\Application Details_Wilson_Rev1 .pdf
Motive : Gasoline (0.78 Kg/m), 12 barg
, 322.5 m3 /hr
Suction : Additive MMT (1.28 Kg/m),
Atmosphere, 3 m3/hr
Discharge : Mixed Flow , 5.5 barg , 25.5
m3/hr

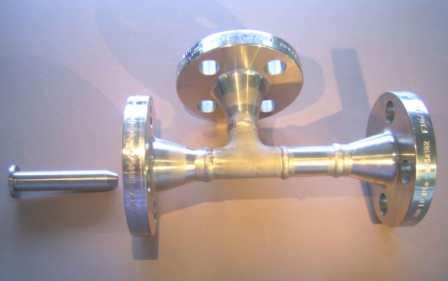

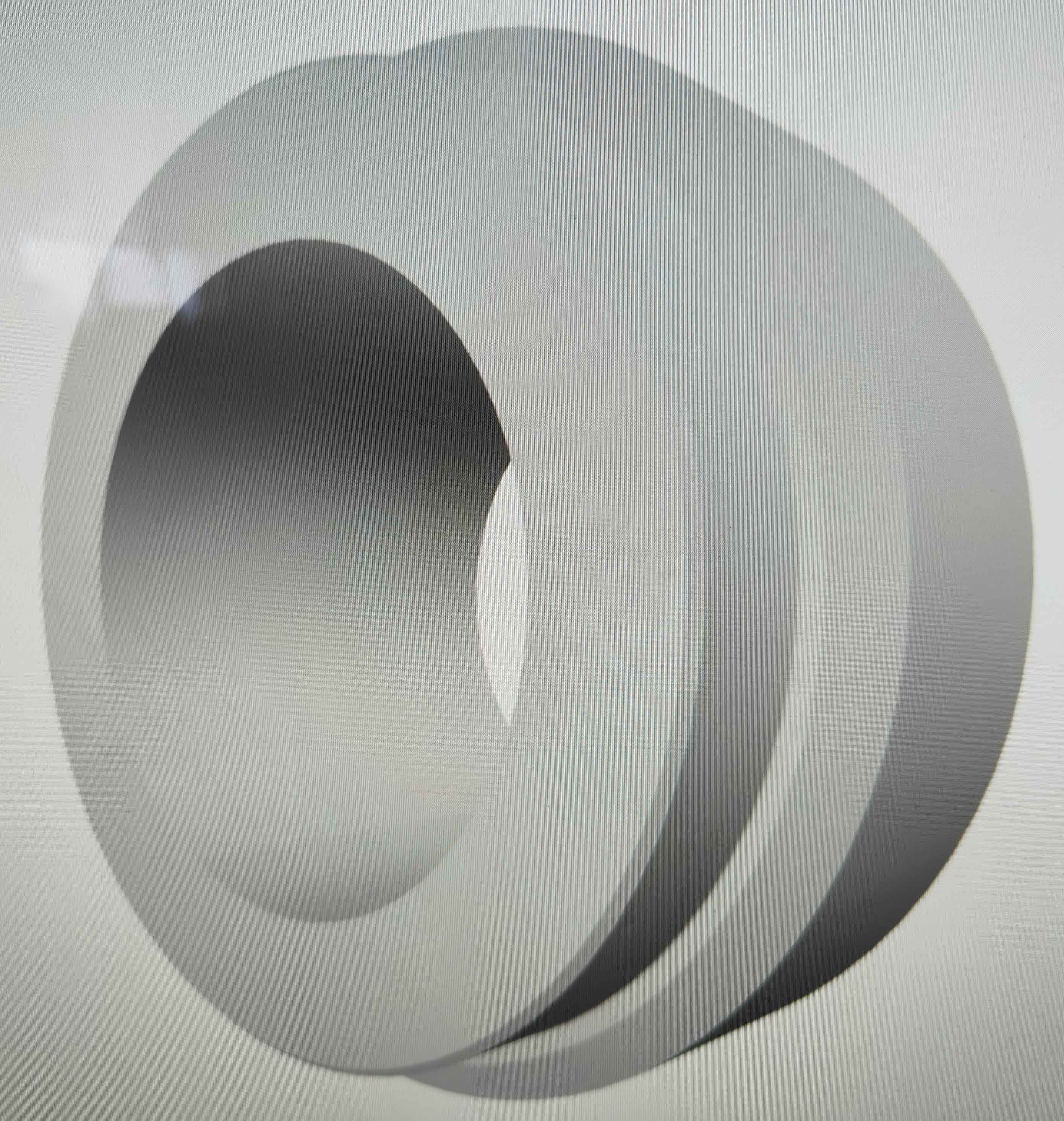

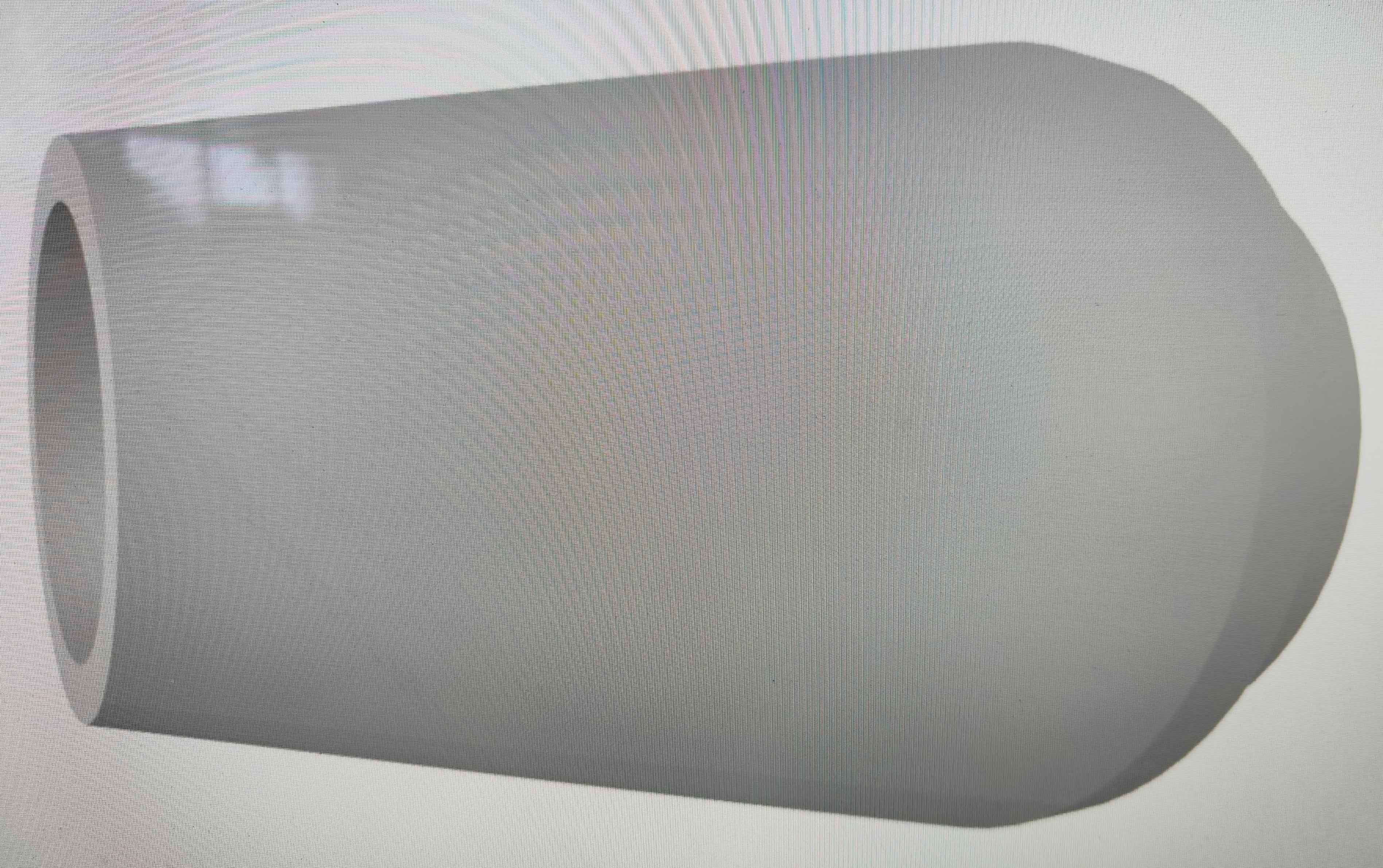

Construction : 316 stainless steel body and
nozzle

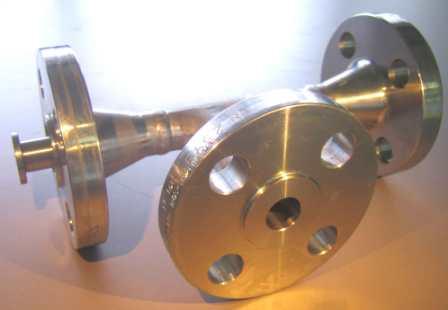

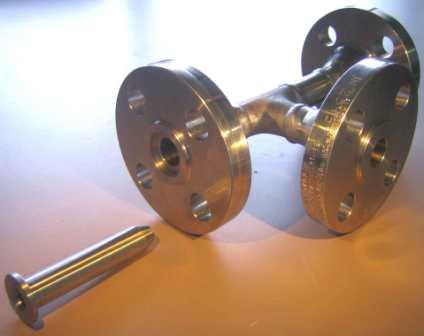

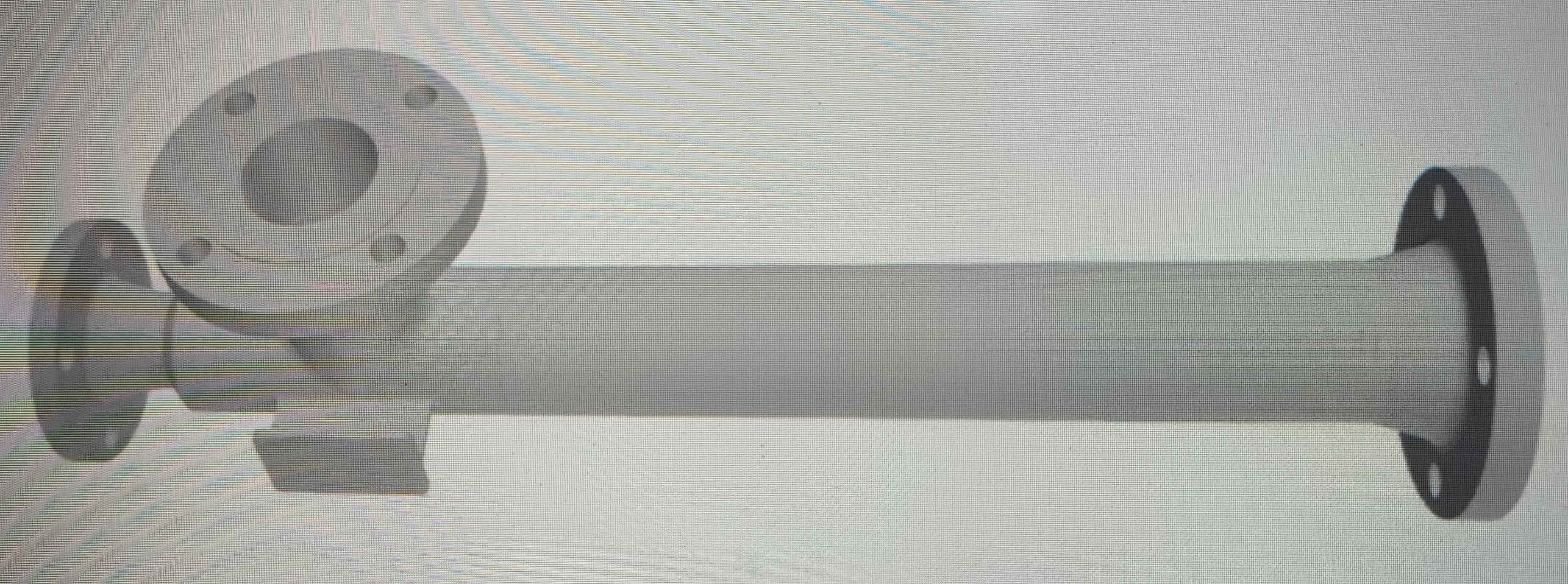

Connections : Motive : 1” Ansi 150 RF
Flange,
Suction : 1” Ansi
150 RF Flange
Discharge : 1” Ansi 150
RF Flange
|
|
